B65701D2000K048 | TDK (EPCOS)
P core, N48, 2000 nH, ±10 %, outer Ø 30.5 mm, inner Ø 25 mm, (H) 19 mm, B65701D2000K048
Unit Price (€ / pc.)
9.8532 € *
Available: 281 pcs.
Total Price:
9.85 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8532 €
10 pcs.
8.6632 €
50 pcs.
8.0801 €
160 pcs.
7.6993 €
640 pcs.
7.2233 €
*incl. VAT plus shipping costs
Subject to prior sale

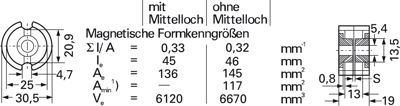

Core kits P 30 x 19, type TDK/Epcos B65701.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65701D2000K48, 2000 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 25 mm | |
| Air gap | 0.05 mm | |
| AL value | 2000 nH | |
| Tolerance | ±10 % | |
| Height | 19 mm | |
| Outer diameter | 30.5 mm | |
| Material | N48 | |
| Core shape | P |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Bulk with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
