B65686A0315A027 | TDK (EPCOS)

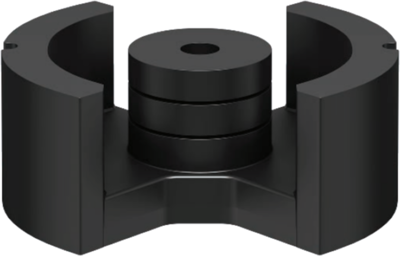

PM core, N27, 315 nH, ±3 %, outer Ø 74 mm, inner Ø 29.5 mm, (H) 59 mm, B65686A0315A027
Order No.: 83D369
EAN: 4099889058789
MPN:
B65686A0315A027
B65686A315A27
Unit Price (€ / pc.)
35.0455 € *
Standard delivery time from the manufacturer is: 10 Weeks
Core kits PM74/59, type TDK/Epcos B65686.
Compliant with IEC 61247, for power transformers and smoothing chokes in clocked high-power power supplies, made of silicon ferrite materials (data listed in table at the end of the section on cores); Basic dimensions of a finished transformer/transponder: L 85.5, W 75, H 65 mm.
Technical attributes (type, AL value, material type, design): B65686A315A27, 315 nH, N27, gapped
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 315 nH | |
| Tolerance | ±3 % | |
| Outer diameter | 74 mm | |
| Inner diameter | 29.5 mm | |
| Core shape | PM | |
| Height | 59 mm | |
| Material | N27 | |
| Air gap | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 10 pieces |
| Customs tariff number | 85049011 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
