B65684A0315A027 | TDK (EPCOS)

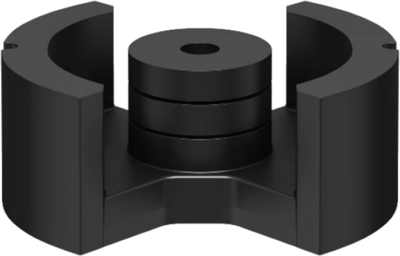

PM core, N27, 315 nH, ±3 %, outer Ø 62 mm, inner Ø 48.8 mm, (H) 49 mm, B65684A0315A027
Unit Price (€ / pc.)
14.0420 € *
Available: 59 pcs.
Total Price:
14.04 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0420 €
5 pcs.
13.2090 €
20 pcs.
12.5307 €
40 pcs.
12.1975 €
160 pcs.
11.5192 €
*incl. VAT plus shipping costs
Subject to prior sale
Core kits PM62/49, type TDK/Epcos B65684.

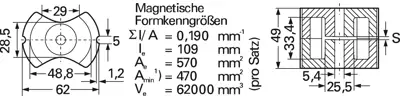

Compliant with IEC 61247, for power transformers and smoothing chokes in clocked high-power power supplies, made of silicon ferrite materials (data listed in table at the end of the section on cores); Basic dimensions of a finished transformer/transponder: L 76, W 64, H 55 mm. Variant: without air gap and with 2.6 mm air gap.
Technical attributes (type, AL value, material type, design): B65684A315A27, 315 nH, N27, gapped
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 62 mm | |
| Height | 49 mm | |
| Material | N27 | |
| Air gap | 2 mm | |
| Tolerance | ±3 % | |
| AL value | 315 nH | |
| Core shape | PM | |
| Inner diameter | 48.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 20 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
