B65684A0000R027 | TDK (EPCOS)

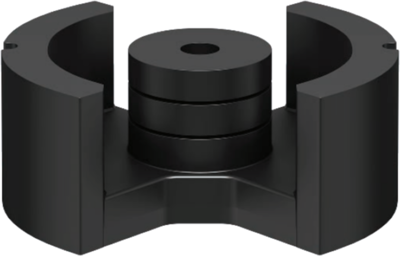

PM core, N27, 9200 nH, -20/+30 %, outer Ø 62 mm, inner Ø 48.8 mm, (H) 49 mm, B65684A0000R027
Unit Price (€ / pc.)
16.3625 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
16.36 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3625 €
5 pcs.
15.3748 €
20 pcs.
14.5894 €
40 pcs.
14.2086 €
160 pcs.
13.4232 €
*incl. VAT plus shipping costs
Subject to prior sale

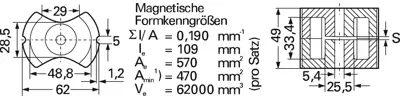

Core kits PM62/49, type TDK/Epcos B65684.
Compliant with IEC 61247, for power transformers and smoothing chokes in clocked high-power power supplies, made of silicon ferrite materials (data listed in table at the end of the section on cores); Basic dimensions of a finished transformer/transponder: L 76, W 64, H 55 mm. Variant: without air gap and with 2.6 mm air gap.
Technical attributes (type, AL value, material type, design): B65684AR27, 9200 nH, N27, not gapped
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | PM | |
| Air gap | no air gap | |
| AL value | 9200 nH | |
| Tolerance | -20/+30 % | |
| Material | N27 | |
| Outer diameter | 62 mm | |
| Inner diameter | 48.8 mm | |
| Height | 49 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Bulk with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
