B65671D1000J048 | TDK (EPCOS)

P core, N48, 1000 nH, ±5 %, outer Ø 26 mm, inner Ø 21.2 mm, (H) 16.3 mm, B65671D1000J048

Order No.: 82D406
EAN: 4099889052770
MPN:
B65671D1000J048
B65671D1000J48
Series: B65671
B65671D1000J048 TDK (EPCOS) Ferrite cores Image 1
B65671D1000J048 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
6.1761 € *
Available: 844 pcs.
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1761 €
10 pcs.
5.7239 €
50 pcs.
5.3907 €
100 pcs.
5.0932 €
250 pcs.
4.8552 €
*incl. VAT plus shipping costs
Subject to prior sale

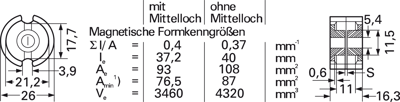

Core kits P 26 x 16, type TDK/Epcos B65671.

To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.

Technical attributes (type, AL value, material): B65671D1000J48, 1000 nH, N48

Technical specifications
Filter Property Value
Height 16.3 mm
Material N48
Tolerance ±5 %
AL value 1000 nH
Core shape P
Outer diameter 26 mm
Inner diameter 21.2 mm
Air gap 0.1 mm
Logistics
Property Value
Original Packaging Bulk with 200 pieces
Customs tariff number 85049011
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
