B65671D0400A048 | TDK (EPCOS)
P core, N48, 400 nH, ±3 %, outer Ø 26 mm, inner Ø 21.2 mm, (H) 16.3 mm, B65671D0400A048
Unit Price (€ / pc.)
4.7838 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
3,827.04 € *
Price list
Quantity
Price per unit*
800 pcs.
4.7838 €
2000 pcs.
4.6410 €
*incl. VAT plus shipping costs
Subject to prior sale

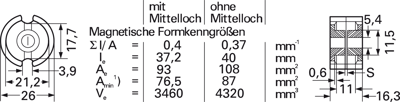

Core kits P 26 x 16, type TDK/Epcos B65671.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65671D400A48, 400 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 400 nH | |
| Air gap | 0.24 mm | |
| Core shape | P | |
| Height | 16.3 mm | |
| Outer diameter | 26 mm | |
| Material | N48 | |
| Inner diameter | 21.2 mm | |
| Tolerance | ±3 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 200 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
