B65661T0400A048 | TDK (EPCOS)
P core kit, N48, 400 nH, ±3 %, outer Ø 22 mm, inner Ø 3.9 mm, (H) 13.6 mm, B65661T0400A048
Unit Price (€ / pc.)
5.6406 € *
Available: 856 pcs.
Total Price:
5.64 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6406 €
10 pcs.
5.2122 €
50 pcs.
4.9266 €
100 pcs.
4.6529 €
250 pcs.
4.4268 €
*incl. VAT plus shipping costs
Subject to prior sale

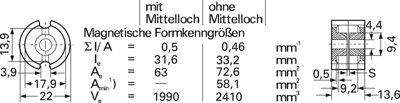

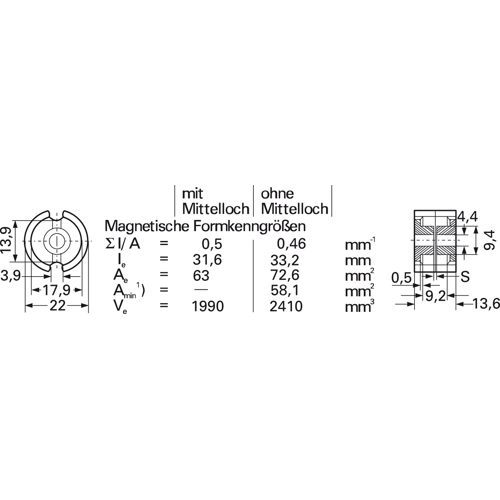

Core kits P 22 x 13, type TDK/Epcos B65661.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65661T400A48, 400 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 22 mm | |
| Material | N48 | |
| Height | 13.6 mm | |
| Air gap | 0.18 mm | |
| Core shape | P | |
| Tolerance | ±3 % | |
| Inner diameter | 3.9 mm | |
| AL value | 400 nH |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
