B65661T0160G048 | TDK (EPCOS)
P core kit, N48, 160 nH, ±2 %, outer Ø 22 mm, inner Ø 3.9 mm, (H) 13.6 mm, B65661T0160G048
Unit Price (€ / pc.)
4.4268 € *
Standard delivery time from the manufacturer is: 10 Weeks

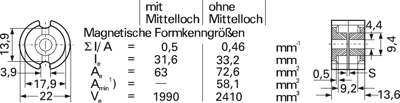

Core kits P 22 x 13, type TDK/Epcos B65661.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65661T160G48, 160 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 160 nH | |
| Core shape | P | |
| Height | 13.6 mm | |
| Outer diameter | 22 mm | |
| Material | N48 | |
| Tolerance | ±2 % | |
| Inner diameter | 3.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Tray with 400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
