B65661D0000R048 | TDK (EPCOS)

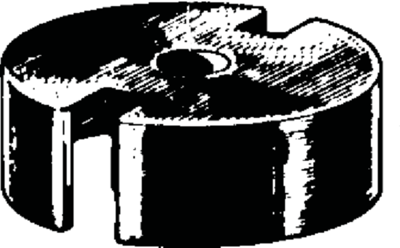

P core, N48, 3800 nH, -20/+30 %, outer Ø 22 mm, inner Ø 3.9 mm, (H) 13.6 mm, B65661D0000R048
Unit Price (€ / pc.)
4.5577 € *
Available: 2,281 pcs.
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
4.0103 €
100 pcs.
3.5105 €
400 pcs.
3.2963 €
800 pcs.
3.1654 €
*incl. VAT plus shipping costs
Subject to prior sale
Without air gap, type B65661
according to IEC 60133. Made of silicon ferrite materials

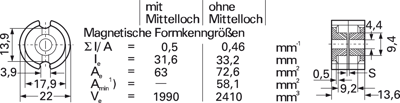

Design: Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65661DR48, 3800 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 3800 nH | |
| Core shape | P | |
| Height | 13.6 mm | |
| Air gap | no air gap | |
| Outer diameter | 22 mm | |
| Material | N48 | |
| Tolerance | -20/+30 % | |
| Inner diameter | 3.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Bulk with 400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
