B65651T0500A048 | TDK (EPCOS)

P core, N48, 500 nH, ±3 %, outer Ø 18.4 mm, inner Ø 14.9 mm, (H) 10.6 mm, B65651T0500A048

Order No.: 82D302
EAN: 4099889052695
MPN:
B65651T0500A048
B65651T500A48
Series: B65651

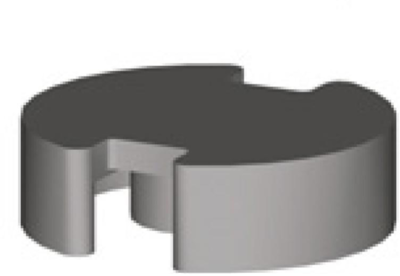

B65651T0500A048 TDK (EPCOS) Ferrite cores Image 1

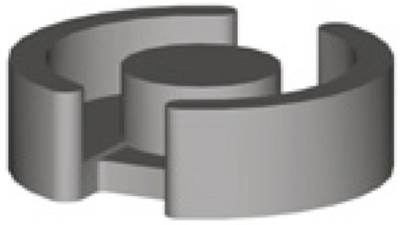

B65651T0500A048 TDK (EPCOS) Ferrite cores Image 2

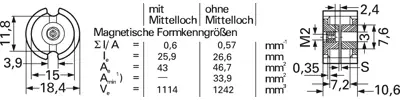

B65651T0500A048 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
3.7723 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5,658.45 € *
Price list
Quantity
Price per unit*
1500 pcs.
3.7723 €
2500 pcs.
3.6533 €
*incl. VAT plus shipping costs
Subject to prior sale

Core kits P 18 x 11, type TDK/Epcos B65651.

To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.

Technical attributes (type, AL value, material): B65651T500A48, 500 nH, N48

Technical specifications
Outer diameter 18.4 mm
Height 10.6 mm
Material N48
Air gap 0.07 mm
Tolerance ±3 %
AL value 500 nH
Core shape P
Inner diameter 14.9 mm
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Tray with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
