B65651T0400A048 | TDK (EPCOS)
P core, N48, 400 nH, ±3 %, outer Ø 18.4 mm, inner Ø 14.9 mm, (H) 10.6 mm, B65651T0400A048
Unit Price (€ / pc.)
7.0091 € *
Available: 24 pcs.
Total Price:
7.01 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0091 €
10 pcs.
5.0099 €
100 pcs.
4.2721 €
500 pcs.
3.7247 €
1000 pcs.
3.3796 €
*incl. VAT plus shipping costs
Subject to prior sale

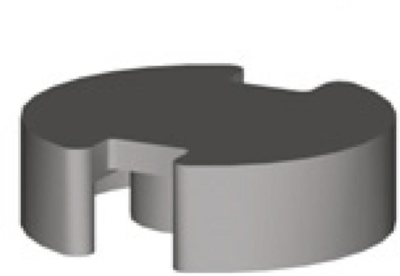

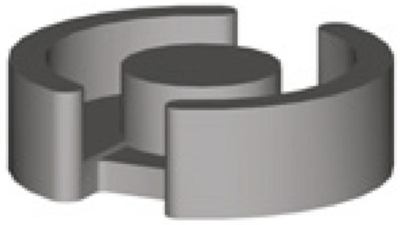

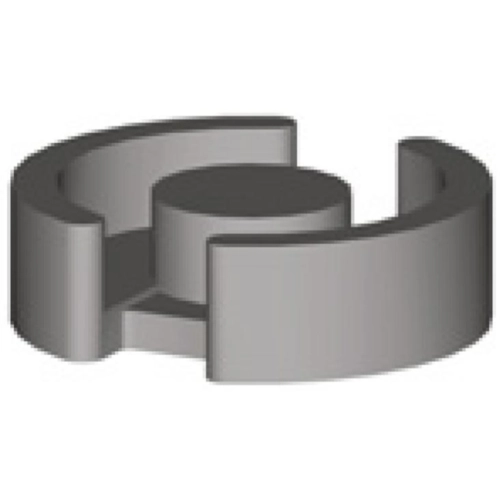

Core kits P 18 x 11, type TDK/Epcos B65651.

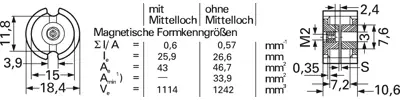

To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65651T400A48, 400 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 14.9 mm | |
| Air gap | 0.1 mm | |
| AL value | 400 nH | |
| Tolerance | ±3 % | |
| Height | 10.6 mm | |
| Outer diameter | 18.4 mm | |
| Material | N48 | |
| Core shape | P |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Tray with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
