B65651T0160G048 | TDK (EPCOS)
P core kit, N48, 160 nH, ±3 %, outer Ø 18.4 mm, inner Ø 14.9 mm, (H) 10.6 mm, B65651T0160G048
Unit Price (€ / pc.)
4.6410 € *
Available: 1,448 pcs.
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.0817 €
100 pcs.
3.5938 €
500 pcs.
3.3082 €
1000 pcs.
3.1654 €
*incl. VAT plus shipping costs
Subject to prior sale

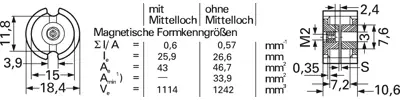

Core kits P 18 x 11, type TDK/Epcos B65651.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65651T160G48, 160 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | P | |
| Air gap | 0.32 mm | |
| Outer diameter | 18.4 mm | |
| AL value | 160 nH | |
| Material | N48 | |
| Height | 10.6 mm | |
| Tolerance | ±3 % | |
| Inner diameter | 14.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
