B65651D0250A048 | TDK (EPCOS)

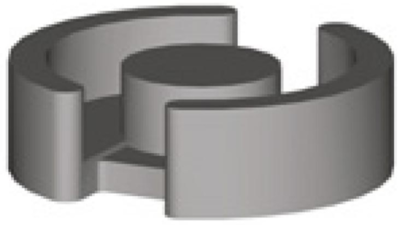

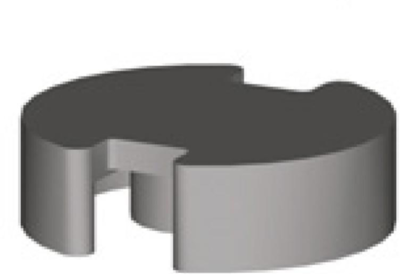

P core, N48, 250 nH, ±3 %, outer Ø 18.4 mm, inner Ø 14.9 mm, (H) 10.6 mm, B65651D0250A048
Unit Price (€ / pc.)
3.0821 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4,623.15 € *
Price list
Quantity
Price per unit*
1500 pcs.
3.0821 €
2500 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale
Core kits P 18 x 11, type TDK/Epcos B65651.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65651D250A48, 250 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 14.9 mm | |
| Air gap | 0.2 mm | |
| AL value | 250 nH | |
| Tolerance | ±3 % | |
| Height | 10.6 mm | |
| Outer diameter | 18.4 mm | |
| Material | N48 | |
| Core shape | P |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Tray with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
