B65646A0000R027 | TDK (EPCOS)
PM core, N27, 7400 nH, -20/+30 %, outer Ø 50 mm, inner Ø 39 mm, (H) 39 mm, B65646A0000R027
Unit Price (€ / pc.)
15.5176 € *
Available: 69 pcs.
Total Price:
15.52 € *
Price list
Quantity
Price per unit*
1 pcs.
15.5176 €
30 pcs.
13.6612 €
60 pcs.
13.1971 €
120 pcs.
12.7330 €
510 pcs.
11.9476 €
*incl. VAT plus shipping costs
Subject to prior sale

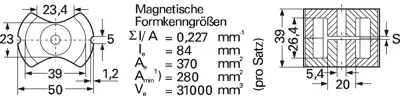

Core kits PM50/39, type TDK/Epcos B65646.
Compliant with IEC 61247, for power transformers and smoothing chokes in clocked high-power power supplies, made of silicon ferrite materials (data listed in table at the end of the section on cores); Basic dimensions of a finished transformer/transponder: L 65, W 52, H 45 mm. Variant: without air gap and with 2.0 mm air gap.
Technical attributes (type, AL value, material type, design): B65646AR27, 7400 nH, N27, not gapped
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 39 mm | |
| Material | N27 | |
| Tolerance | -20/+30 % | |
| AL value | 7400 nH | |
| Core shape | PM | |
| Outer diameter | 50 mm | |
| Inner diameter | 39 mm | |
| Air gap | no air gap |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 30 pieces |
| Customs tariff number | 85049011 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
