B65611T0250G048 | TDK (EPCOS)
P core kit, N48, 250 nH, ±2 %, outer Ø 36 mm, inner Ø 29.9 mm, (H) 22 mm, B65611T0250G048
Unit Price (€ / pc.)
8.6751 € *
Available: 176 pcs.
Total Price:
8.68 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6751 €
10 pcs.
8.0325 €
50 pcs.
7.5803 €
100 pcs.
7.1519 €
250 pcs.
6.8187 €
*incl. VAT plus shipping costs
Subject to prior sale

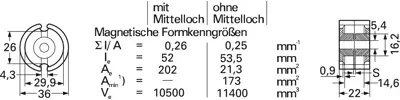

Core kits P 36 x 22, type TDK/Epcos B65611.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. gapped. Type D with center hole, type T with screw flange, type W without center hole.
Technical attributes (type, AL value, material): B65611T250G48, 250 nH, N48
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±2 % | |
| Height | 22 mm | |
| Material | N48 | |
| Inner diameter | 29.9 mm | |
| AL value | 250 nH | |
| Core shape | P | |
| Outer diameter | 36 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 50 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
