B65541T0315A048 | TDK (EPCOS)
P core, N48, 315 nH, ±3 %, outer Ø 14.3 mm, inner Ø 11.6 mm, (H) 8.5 mm, B65541T0315A048
Unit Price (€ / pc.)
3.4986 € *
Available: 1,478 pcs.
Total Price:
3.50 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4986 €
10 pcs.
3.0821 €
100 pcs.
2.7013 €
500 pcs.
2.4990 €
1000 pcs.
2.3919 €
*incl. VAT plus shipping costs
Subject to prior sale

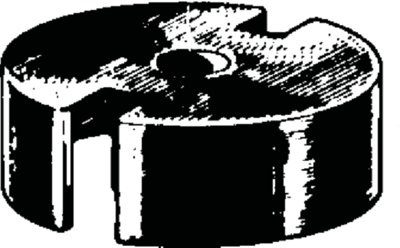

Core kits P 14 x 8.0, type TDK/Epcos B65541.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65541T315A48, 315 nH, N48

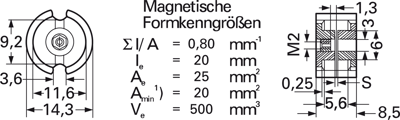

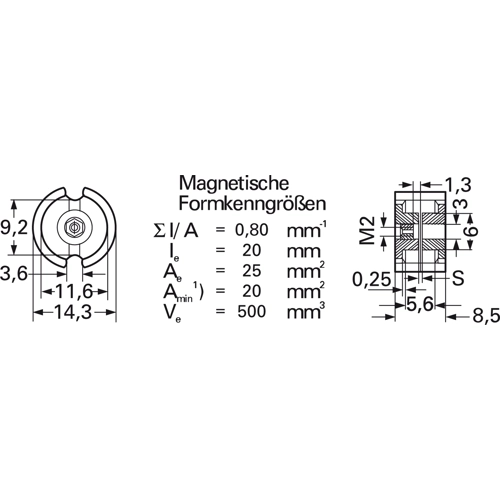

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 11.6 mm | |
| Air gap | 0.08 mm | |
| AL value | 315 nH | |
| Tolerance | ±3 % | |
| Height | 8.5 mm | |
| Outer diameter | 14.3 mm | |
| Material | N48 | |
| Core shape | P |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Tray with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
