B65541T0100A033 | TDK (EPCOS)

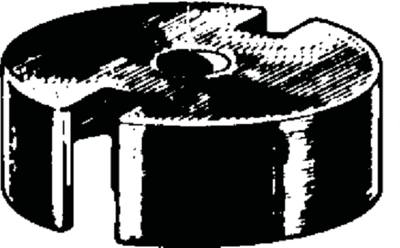

P core, M33, 100 nH, ±3 %, outer Ø 14.3 mm, inner Ø 11.6 mm, (H) 8.5 mm, B65541T0100A033
Unit Price (€ / pc.)
2.6418 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3,962.70 € *
Price list
Quantity
Price per unit*
1500 pcs.
2.6418 €
2500 pcs.
2.5585 €
*incl. VAT plus shipping costs
Subject to prior sale

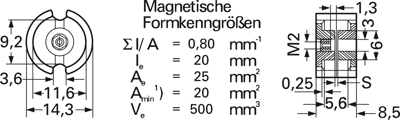

Core kits P 14 x 8.0, type TDK/Epcos B65541.
To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.
Technical attributes (type, AL value, material): B65541T100A33, 100 nH, M33
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 11.6 mm | |
| Air gap | 0.3 mm | |
| AL value | 100 nH | |
| Tolerance | ±3 % | |
| Height | 8.5 mm | |
| Outer diameter | 14.3 mm | |
| Material | M33 | |
| Core shape | P |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Tray with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
