B65541D0250A048 | TDK (EPCOS)

P core, N48, 250 nH, ±3 %, outer Ø 14.3 mm, inner Ø 11.6 mm, (H) 8.5 mm, B65541D0250A048

Order No.: 82D237
EAN: 4099889052626
MPN:
B65541D0250A048
B65541D250A48

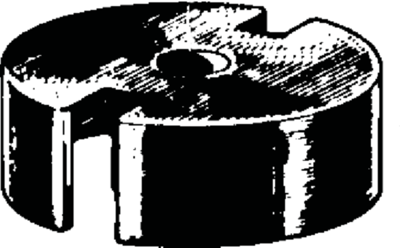

B65541D0250A048 TDK (EPCOS) Ferrite cores Image 1
B65541D0250A048 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2,623.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
1.7493 €

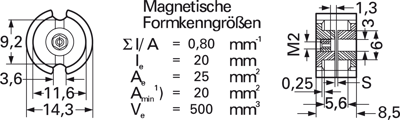

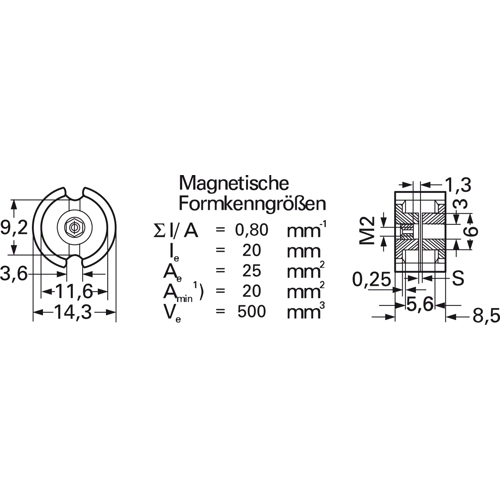

Core kits P 14 x 8.0, type TDK/Epcos B65541.

To IEC 60133. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Design: gapped. Type D with center hole, type T with threaded sleeve, type W without center hole.

Technical attributes (type, AL value, material): B65541D250A48, 250 nH, N48

Technical specifications
Outer diameter 14.3 mm
Height 8.5 mm
Material N48
Air gap 0.1 mm
Tolerance ±3 %
AL value 250 nH
Core shape P
Inner diameter 11.6 mm
Logistics
Country of origin CZ
Customs tariff number 85049011
Original Packaging Tray with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
