B65525J0160A087 | TDK (EPCOS)

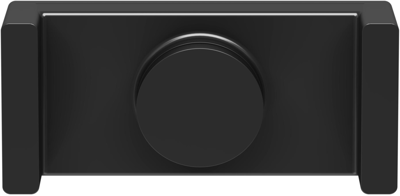

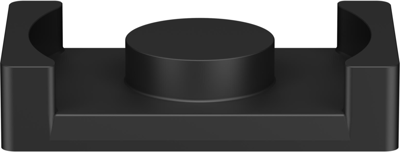

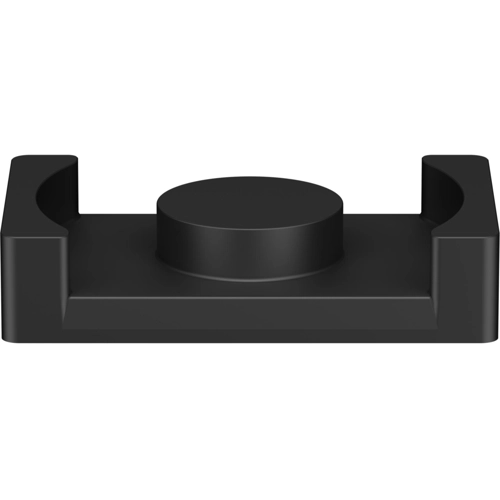

ER core, N87, 160 nH, ±3 %, outer Ø 8.7 mm, inner Ø 4.25 mm, (L x W x H) 11 x 6 x 5 mm, B65525J0160A087
Unit Price (€ / pc.)
1.5232 € *
Available: 438 pcs.
Total Price:
15.23 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5232 €
50 pcs.
1.3447 €
250 pcs.
1.1543 €
1000 pcs.
1.0234 €
5000 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
Core kits ER11, type TDK/Epcos B65525.
To IEC 62317-9. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section; Basic dimensions of a finished transformer or signal transformer: L 12.5, W 11.1, H 5.6 mm.
Technical attributes (type, AL value, material): B65525J160A87, 160 nH, N87, gapped
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | ER | |
| Air gap | 0.08 mm | |
| Material | N87 | |
| AL value | 160 nH | |
| Tolerance | ±3 % | |
| Outer diameter | 8.7 mm | |
| Inner diameter | 4.25 mm | |
| Length | 11 mm | |
| Width | 6 mm | |
| Height | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Tray with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
