B64290P0037X830 | TDK (EPCOS)
Toroidal core, N30, 1090 nH, ±25 %, outer Ø 6.3 mm, inner Ø 3.8 mm, (H) 2.5 mm, B64290P0037X830
Unit Price (€ / pc.)
0.7140 € *
Available: 2,649 pcs.
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7140 €
50 pcs.
0.5831 €
250 pcs.
0.5117 €
1000 pcs.
0.4403 €
2000 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of N30, type B64290.
Permeability in new state: 4300. AL value tolerance: ±25 %. Type B64290A84X830 without coating.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290P37X830, R 6.3, 1090 nH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | N30 | |
| Core shape | ring | |
| Tolerance | ±25 % | |
| AL value | 1090 nH | |
| Air gap | no air gap | |

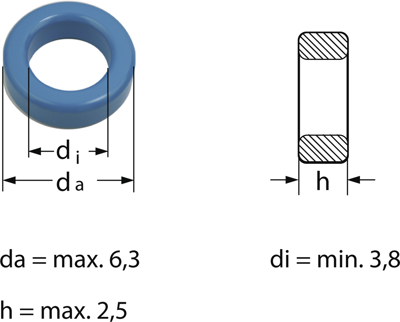

| Outer diameter | 6.3 mm | |
| Inner diameter | 3.8 mm | |
| Height | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 4,000 pieces |
| Country of origin | CZ |
| Customs tariff number | 85049011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
