B64290L0632X027 | TDK (EPCOS)

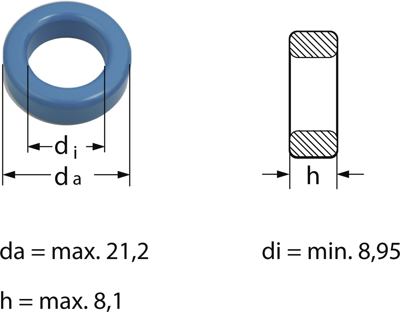

Toroidal core, N27, 1450 nH, ±25 %, outer Ø 20 mm, inner Ø 10 mm, (H) 7 mm, B64290L0632X027
Unit Price (€ / pc.)
1.2971 € *
Available: 983 pcs.
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
10 pcs.
0.9020 €
100 pcs.
0.6033 €
500 pcs.
0.4962 €
1000 pcs.
0.4939 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of N27, type B64290.
Permeability in new state: 2000.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290L632X27, R 20, 1450 nH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 1450 nH | |
| Outer diameter | 20 mm | |
| Height | 7 mm | |
| Air gap | no air gap | |
| Tolerance | ±25 % | |
| Material | N27 | |
| Inner diameter | 10 mm | |
| Core shape | ring |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Carton with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
