B64290L0618X035 | TDK (EPCOS)

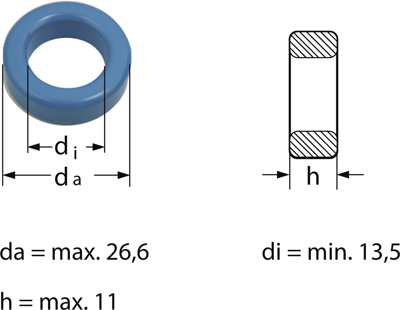

Toroidal core, T35, 5400 nH, ±25 %, outer Ø 25.3 mm, inner Ø 14.8 mm, (H) 11 mm, B64290L0618X035
Unit Price (€ / pc.)
2.0230 € *
Available: 1,182 pcs.
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0230 €
10 pcs.
1.6898 €
100 pcs.
1.4399 €
250 pcs.
1.3090 €
1000 pcs.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of T35, type B64290.
Permeability in new state: 5000. AL value tolerance: ±25 %.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290L618X35, R 25.3, 5400 nH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 5400 nH | |
| Air gap | no air gap | |
| Core shape | ring | |
| Height | 11 mm | |
| Outer diameter | 25.3 mm | |
| Material | T35 | |
| Inner diameter | 14.8 mm | |
| Tolerance | ±25 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Original Packaging | Carton with 500 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
