B64290L0045X027 | TDK (EPCOS)

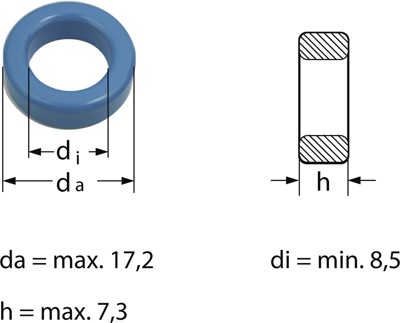

Toroidal core, N27, 1290 nH, ±25 %, outer Ø 16 mm, inner Ø 9.6 mm, (H) 6.3 mm, B64290L0045X027
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 18 Weeks
Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of N27, type B64290.
Permeability in new state: 2000.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290L45X27, R 16, 1290 nH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | ring | |
| AL value | 1290 nH | |
| Material | N27 | |
| Air gap | no air gap | |
| Inner diameter | 9.6 mm | |
| Outer diameter | 16 mm | |
| Tolerance | ±25 % | |
| Height | 6.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Carton with 2,000 pieces |
| Customs tariff number | 85049011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
