B64290L0044X830 | TDK (EPCOS)

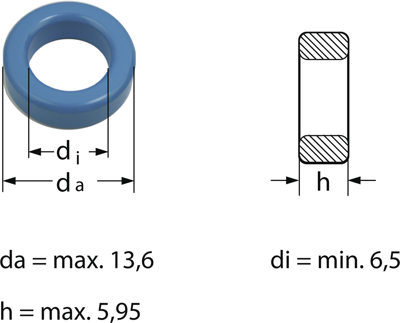

Toroidal core, N30, 2200 nH, ±25 %, outer Ø 12.5 mm, inner Ø 7.5 mm, (H) 5 mm, B64290L0044X830
Unit Price (€ / pc.)
0.7259 € *
Available: 3,914 pcs.
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
10 pcs.
0.4522 €
50 pcs.
0.3689 €
250 pcs.
0.3094 €
1000 pcs.
0.2678 €
*incl. VAT plus shipping costs
Subject to prior sale

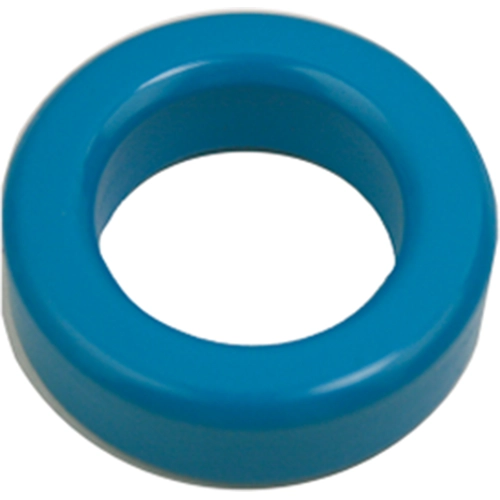

Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of N30, type B64290.
Permeability in new state: 4300. AL value tolerance: ±25 %. Type B64290A84X830 without coating.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290L44X830, R 12.5, 2200 nH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 2200 nH | |
| Air gap | no air gap | |
| Core shape | ring | |
| Height | 5 mm | |
| Outer diameter | 12.5 mm | |
| Material | N30 | |
| Inner diameter | 7.5 mm | |
| Tolerance | ±25 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Original Packaging | Carton with 1,500 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
