B64290L0044X038 | TDK (EPCOS)

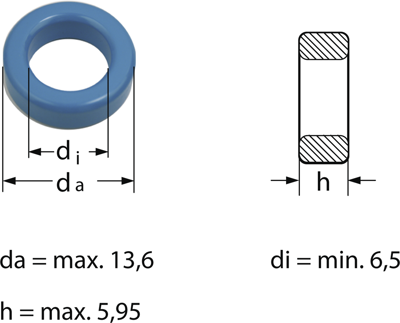

Toroidal core, T38, 5110 nH, ±30 %, outer Ø 12.5 mm, inner Ø 7.5 mm, (H) 5 mm, B64290L0044X038
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7473 € *
Available: 1,742 pcs.
Total Price:
0.75 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7473 €
10 pcs.
0.5141 €
100 pcs.
0.3511 €
500 pcs.
0.2606 €
1000 pcs.
0.2273 €
*incl. VAT plus shipping costs
Subject to prior sale

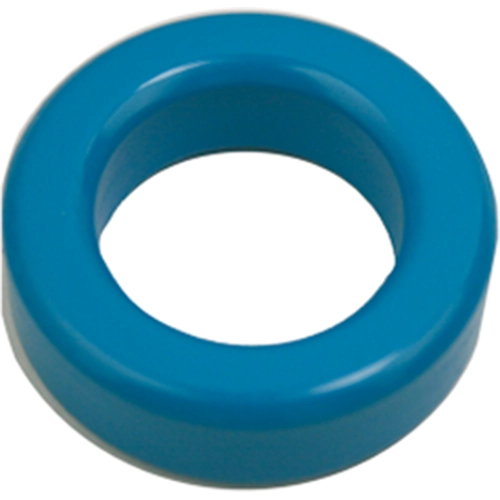

Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of T38, type B64290.
Permeability in new state: 10,000. AL value tolerance: ±30 %.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290L44X38, R 12.5, 5110 nH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | ring | |
| Air gap | no air gap | |
| Material | T38 | |
| AL value | 5110 nH | |
| Tolerance | ±30 % | |
| Outer diameter | 12.5 mm | |
| Inner diameter | 7.5 mm | |
| Height | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | CZ |
| Original Packaging | Carton with 1,500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
