B62152A0007X001 | TDK (EPCOS)

Double hole core, K1, 140 nH, ±30 %, (L x W x H) 7.25 x 4.2 x 6.2 mm, B62152A0007X001

Order No.: 84D292
EAN: 4099889060126
MPN:
B62152A0007X001
B62152A7X1
Series: B62152

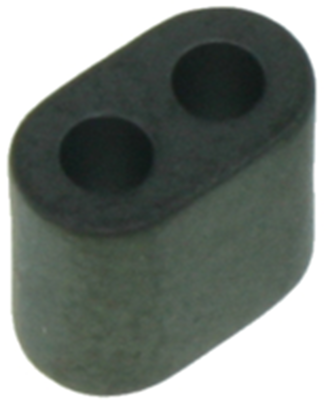

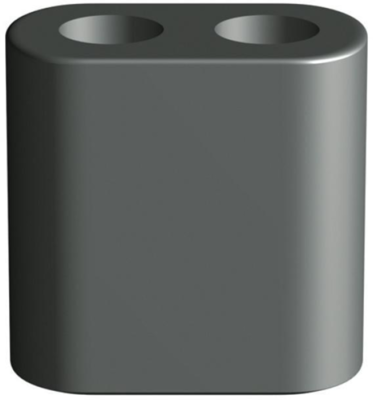

B62152A0007X001 TDK (EPCOS) Ferrite cores Image 1
B62152A0007X001 TDK (EPCOS) Ferrite cores Image 2
B62152A0007X001 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available: 3,132 pcs.
Total Price:
18.09 € *
Price list
Quantity
Price per unit*
10 pcs.
1.8088 €
50 pcs.
1.5827 €
250 pcs.
1.3566 €
2000 pcs.
1.0829 €
4000 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-aperture cores, type TDK/Epcos B62152.

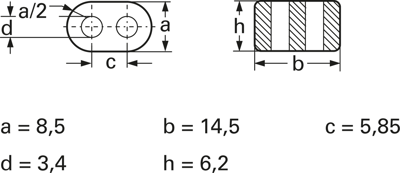

For RF applications, made of silicon ferrite materials (data at the end of the cores section); Dimensions: a 8.5, b 14.5, c 5.85, d 3.4 mm (type B62152A7X1 and B62152A7X30 a 4.2, b 7.25, c 2.9, d 1.7 mm).

Technical attributes (type, material, dimension h, AL value approx): B62152A7X1, K1, 6.2 mm, 140 nH

Technical specifications
Filter Property Value
Width 4.2 mm
Height 6.2 mm
Length 7.25 mm
Material K1
Air gap no air gap
Tolerance ±30 %
AL value 140 nH
Core shape double hole
Logistics
Property Value
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 2,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
