B62152A0004X030 | TDK (EPCOS)

Double hole core, N30, 10000 nH, ±30 %, (L x W x H) 14.5 x 8.5 x 8.3 mm, B62152A0004X030

Order No.: 84D286
EAN: 4099889060119
MPN:
B62152A0004X030
B62152A4X30
Series: B62152

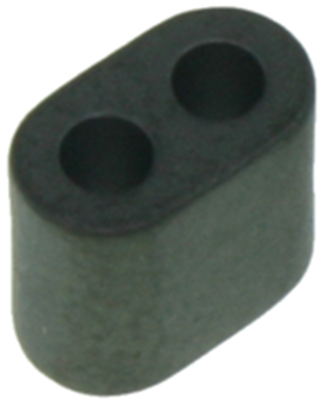

B62152A0004X030 TDK (EPCOS) Ferrite cores Image 1
B62152A0004X030 TDK (EPCOS) Ferrite cores Image 2

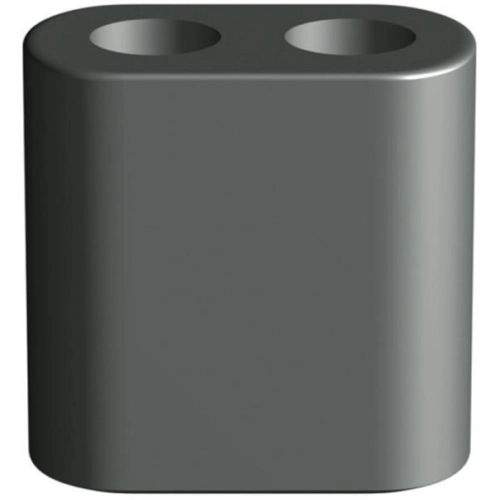

B62152A0004X030 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
2.5347 € *
Available: 765 pcs.
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
1.5827 €
50 pcs.
1.3923 €
250 pcs.
1.2019 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-aperture cores, type TDK/Epcos B62152.

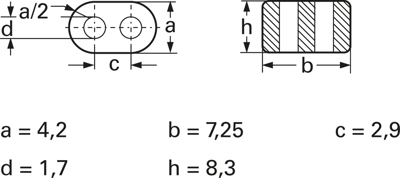

For RF applications, made of silicon ferrite materials (data at the end of the cores section); Dimensions: a 8.5, b 14.5, c 5.85, d 3.4 mm (type B62152A7X1 and B62152A7X30 a 4.2, b 7.25, c 2.9, d 1.7 mm).

Technical attributes (type, material, dimension h, AL value approx): B62152A4X30, N30, 8.3 mm, 10000 nH

Technical specifications
Filter Property Value
Width 8.5 mm
Height 8.3 mm
Length 14.5 mm
Material N30
Air gap no air gap
Tolerance ±30 %
AL value 10000 nH
Core shape double hole
Logistics
Property Value
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 1,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
