B62152A0004X001 | TDK (EPCOS)

Double hole core, K1, 190 nH, ±30 %, (L x W x H) 14.5 x 8.5 x 8.3 mm, B62152A0004X001

Order No.: 84D282
EAN: 4099889060102
MPN:
B62152A0004X001
B62152A4X1
Series: B62152

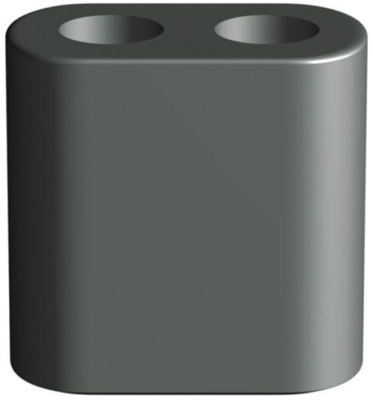

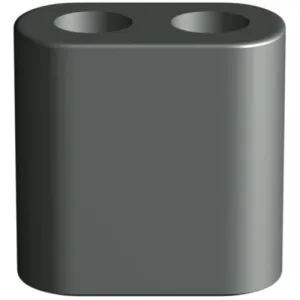

B62152A0004X001 TDK (EPCOS) Ferrite cores Image 1
B62152A0004X001 TDK (EPCOS) Ferrite cores Image 2
Image may differ
Unit Price (€ / pc.)
1.9278 € *
Available: 3,297 pcs.
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
2 pcs.
1.9278 €
25 pcs.
1.7136 €
150 pcs.
1.5351 €
500 pcs.
1.4042 €
1000 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-aperture cores, type TDK/Epcos B62152.

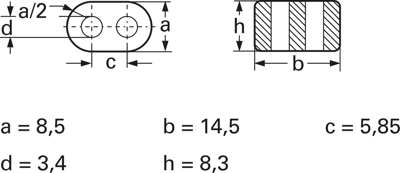

For RF applications, made of silicon ferrite materials (data at the end of the cores section); Dimensions: a 8.5, b 14.5, c 5.85, d 3.4 mm (type B62152A7X1 and B62152A7X30 a 4.2, b 7.25, c 2.9, d 1.7 mm).

Technical attributes (type, material, dimension h, AL value approx): B62152A4X1, K1, 8.3 mm, 190 nH

Technical specifications
Filter Property Value
AL value 190 nH
Width 8.5 mm
Material K1
Height 8.3 mm
Tolerance ±30 %
Length 14.5 mm
Core shape double hole
Air gap no air gap
Logistics
Property Value
Country of origin CZ
Customs tariff number 85049011
Original Packaging Bulk with 1,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
