B43644A5687M000 | TDK (EPCOS)
Electrolytic capacitor, 680 µF, 450 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43644A5687M000
Not suitable for new designs
Unit Price (€ / pc.)
17.5406 € *
Available: 155 pcs.
Total Price:
17.54 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5406 €
5 pcs.
15.7794 €
15 pcs.
14.3395 €
50 pcs.
13.1495 €
150 pcs.
12.1380 €
*incl. VAT plus shipping costs
Subject to prior sale

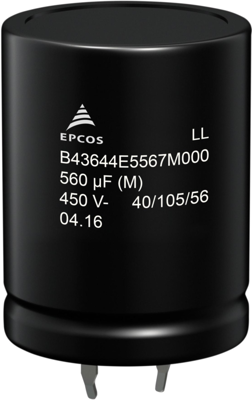

Electrolytic capacitor, B43644A5687M000, EPCOS
Snap-in capacitor
Features
- Extremely high CV product, very compact
- High rated capacitance
- High reliability and high ripple current capability
- RoHS-compatible
Applications
- Frequency converters
- Solar inverters
- Uninterruptible power supplies
- Medical appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| diameter | 35 mm | |
| ESR (Equivalent Series Resistance) | 160 mΩ | |
| Connection | snap-in | |
| Rated voltage (DC) | 450 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 55 mm | |
| Capacity | 680 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 2.77 A | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 60 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
