B43643A5127M052 | TDK (EPCOS)

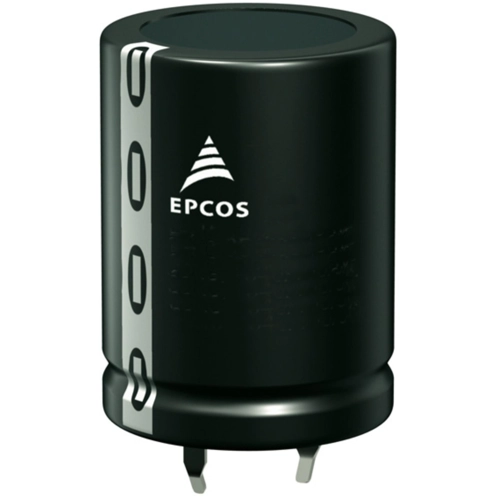

Electrolytic capacitor, 120 µF, 450 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, B43643A5127M052
Order No.: 53D5273
EAN: 4099879877208
MPN:
B43643A5127M052
Unit Price (€ / pc.)
3.0940 € *
Standard delivery time from the manufacturer is: 999 Weeks
Electrolytic capacitor, B43643A5127M052, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- Extremely high CV product, very compact
- High rated capacitance
- High reliability and high ripple current capability
- RoHS-compatible
Applications
- Frequency converters
- Solar inverters
- Uninterruptible power supplies
- Medical appliances
Technical specifications
| Rated voltage (DC) | 450 V | |
| Capacity | 120 µF | |
| diameter | 22 mm | |
| Grid | 10 mm | |
| Length | 30 mm | |
| Version | polar | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 880 mΩ | |
| min. operating temperature | -25 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 0.76 A |
Download
Logistics
| Customs tariff number | 85322200 |
| Original Packaging | Bulk with 160 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
