B43642F2827M062 | TDK (EPCOS)

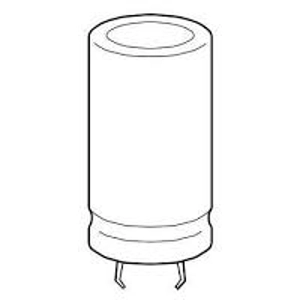

Electrolytic capacitor, 820 µF, 250 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, B43642F2827M062
Order No.: 17D0605
EAN: 4099879873897
MPN:
B43642F2827M062
B43642F2827M 62
Unit Price (€ / pc.)
5.2003 € *
Standard delivery time from the manufacturer is: 6 Weeks
Electrolytic capacitor, B43642F2827M062, EPCOS
Aluminum electrolytic capacitor
Features
- Extremely high CV product, very compact
- High rated capacitance
- High reliability and high ripple current capability
- RoHS-compatible
Applications
- Frequency converters
- Solar inverters
- Uninterruptible power supplies
- Medical appliances
Technical specifications
| Rated voltage (DC) | 250 V | |
| Capacity | 820 µF | |
| diameter | 30 mm | |
| Grid | 10 mm | |
| Length | 35 mm | |
| Version | polar | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 100 mΩ | |
| min. operating temperature | -40 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 2.45 A |
Download
Logistics
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 80 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
