B43642A9127M087 | TDK (EPCOS)
Electrolytic capacitor, 82 µF, 450 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, B43642A9127M087
Order No.: 17D0596
EAN: 4099879873880
MPN:
B43642A9127M087
B43642A9127M 87
Unit Price (€ / pc.)
3.3677 € *
Standard delivery time from the manufacturer is: 20 Weeks
Electrolytic capacitor, B43642A9127M087, EPCOS

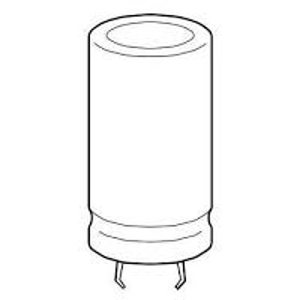

Aluminum electrolytic capacitor - Snap-in capacitor
Features
- Extremely high CV product, very compact
- High rated capacitance
- Very high ripple current capability
- Optimized internal thermal resistance
Applications
- Frequency converters
- Solar inverters
- Uninterruptible power supplies
- Medical appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | snap-in | |
| Rated voltage (DC) | 450 V | |
| Length | 25 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| diameter | 22 mm | |
| Ripple current | 590 mA | |
| Version | polar | |
| Capacity | 82 µF | |
| Tolerance | ±20 % | |
| Grid | 10 mm | |
| ESR (Equivalent Series Resistance) | 830 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
