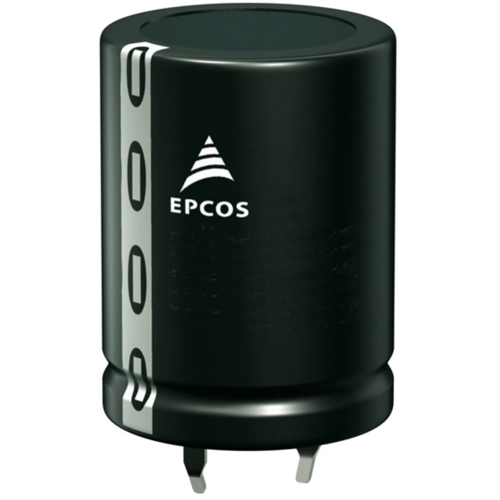

B43640C5187M062 | TDK (EPCOS)
Electrolytic capacitor, 180 µF, 450 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, B43640C5187M062
Order No.: 45D7984
EAN: 4099879876546
MPN:
B43640C5187M062
B43640C5187M62
Unit Price (€ / pc.)
3.8437 € *
Standard delivery time from the manufacturer is: 7 Weeks
Electrolytic capacitor, B43640C5187M062, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- Extremely high CV product, very compact
- High rated capacitance
- High reliability and high ripple current capability
- RoHS-compatible
Applications
- Frequency converters
- Solar inverters
- Uninterruptible power supplies
- Medical appliances
Technical specifications
| Rated voltage (DC) | 450 V | |
| Capacity | 180 µF | |
| diameter | 30 mm | |
| Grid | 10 mm | |
| Length | 25 mm | |
| Version | polar | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 550 mΩ | |
| min. operating temperature | -40 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 910 mA |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 80 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
