B43601A9157M000 | TDK (EPCOS)
Electrolytic capacitor, 150 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, B43601A9157M000
Not suitable for new designs
Unit Price (€ / pc.)
6.2356 € *
Available: 159 pcs.
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.5454 €
50 pcs.
4.9861 €
150 pcs.
4.5339 €
500 pcs.
4.1531 €
*incl. VAT plus shipping costs
Subject to prior sale

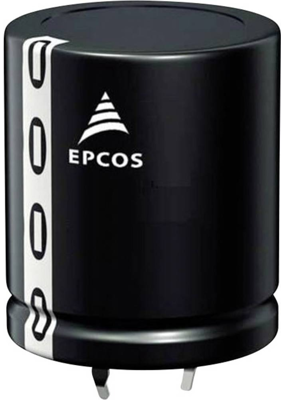

Electrolytic capacitor in aluminum can, type TDK/Epcos B43601.
PVC-insulated can with snap-in connection, to IEC 60384-4
Rated voltage 400 VDC.

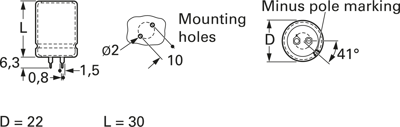

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Ripple current | 1.09 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Connection | snap-in | |
| diameter | 22 mm | |
| Rated voltage (DC) | 400 V | |
| Tolerance | ±20 % | |
| Capacity | 150 µF | |
| ESR (Equivalent Series Resistance) | 720 mΩ | |
| Design | radial | |
| Length | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | HU |
| Original Packaging | Carton with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
