B43570C4608Q000 | TDK (EPCOS)

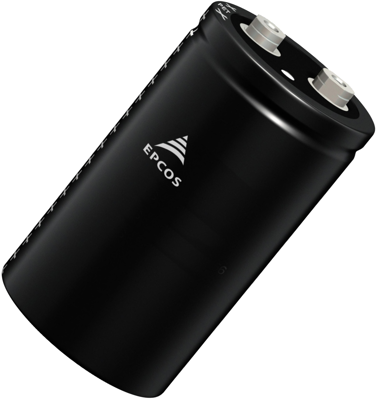

Electrolytic capacitor, 6000 µF, 350 V (DC), -10/+30 %, can, Ø 76.9 mm, B43570C4608Q000
Not suitable for new designs
Unit Price (€ / pc.)
140.8603 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
140.86 € *
Price list
Quantity
Price per unit*
1 pcs.
140.8603 €
24 pcs.
124.7834 €
*incl. VAT plus shipping costs
Subject to prior sale
Aluminium electrolytic capacitor, B43570C4608Q000, EPCOS
Cap Aluminum 6000uF 350V -10% to 30% (76.9 X 220.7mm) Stud Mount Metal Can 0.014 Ohm 15000mA 105°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 76.9 mm | |
| ESR (Equivalent Series Resistance) | 0.014 Ω | |

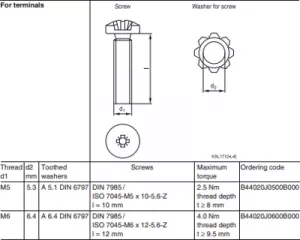

| Connection | screw connection | |
| Rated voltage (DC) | 350 V | |
| max. operating temperature | 105 °C | |
| Tolerance | -10/+30 % | |
| Length | 220.7 mm | |
| Capacity | 6000 µF | |
| Ripple current | 15 A | |
| Design | can | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 12 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
