B43547F2827M080 | TDK (EPCOS)

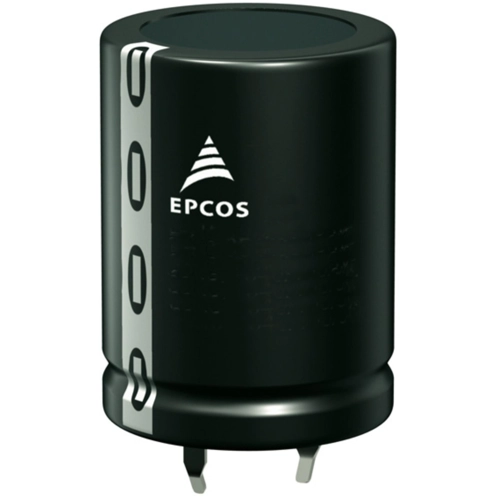

Name: Electrolytic capacitor, 820 µF, 250 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43547F2827M080
Brand: TDK (EPCOS)
SKU: 45D7860
Availability: InStock

Electrolytic capacitor, 820 µF, 250 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43547F2827M080

Order No.: 45D7860

EAN: 4099879876461

MPN:

B43547F2827M080

B43547F2827M80

Image may differ

Key Specification:

Version polar

Capacity 820 µF

Rated voltage (DC) 250 V

Tolerance ±20 %

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.2951 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,510.82 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Electrolytic capacitor, B43547F2827M080, EPCOS

Aluminum electrolytic capacitor - Snap-in capacitor

Features

Extremely high CV product, very compact
Rated capacitance 820 µF
High reliability and high ripple current capability
Rated voltage 250 V DC

Applications

Servo drives
Frequency converters
Uninterruptible power supplies
Medical appliances

Technical specifications

Filter	Property	Value
	Grid	10 mm
	Ripple current	3.04 A
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Version	polar
	Connection	snap-in
	diameter	35 mm
	Rated voltage (DC)	250 V
	Tolerance	±20 %
	Capacity	820 µF
	ESR (Equivalent Series Resistance)	85 mΩ
	Design	radial
	Length	35 mm
