B43547C9337M060 | TDK (EPCOS)

Name: Electrolytic capacitor, 330 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43547C9337M060
Brand: TDK (EPCOS)
SKU: 45D7850
Availability: InStock

Electrolytic capacitor, 330 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43547C9337M060

Order No.: 45D7850

EAN: 4099879876430

MPN:

B43547C9337M060

B43547C9337M60

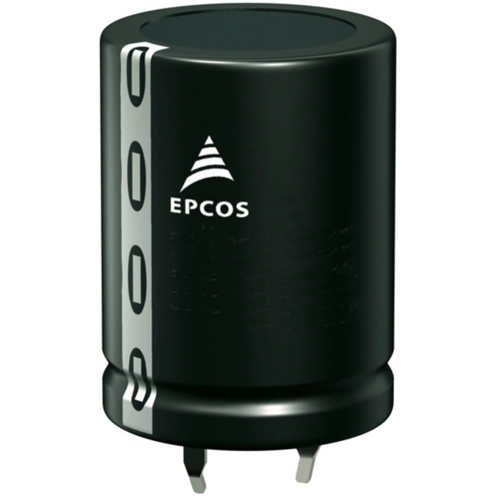

Image may differ

Key Specification:

Version polar

Capacity 330 µF

Rated voltage (DC) 400 V

Tolerance ±20 %

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.5573 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,333.75 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Electrolytic capacitor, B43547C9337M060, EPCOS

Aluminum electrolytic capacitor - Snap-in capacitor

Features

High CV product
Rated capacitance 330 µF
High reliability
Rated voltage 400 V DC

Applications

Servo drives
Frequency converters
Solar inverters
Medical appliances

Technical specifications

Filter	Property	Value
	Grid	10 mm
	Ripple current	2.13 A
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Version	polar
	Connection	snap-in
	diameter	35 mm
	Rated voltage (DC)	400 V
	Tolerance	±20 %
	Capacity	330 µF
	ESR (Equivalent Series Resistance)	160 mΩ
	Design	radial
	Length	35 mm
