B43544E2567M067 | TDK (EPCOS)

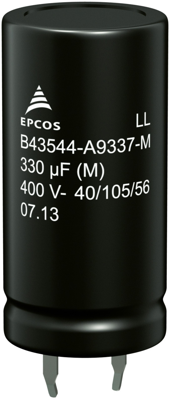

Electrolytic capacitor, 560 µF, 250 V (DC), ±20 %, radial, pitch 10 mm, Ø 25 mm, B43544E2567M067
Order No.: 45D7740
EAN: 4099879876294
MPN:
B43544E2567M067
B43544E2567M67
Unit Price (€ / pc.)
4.1888 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Electrolytic capacitor, B43544E2567M067, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- Extremely high CV product, very compact
- Very high ripple current capability
- High reliability
- Very low ESR at operating conditions above 50 °C
Applications
- Servo drives
- Frequency converters
- Solar inverters
- Medical appliances
Technical specifications
| Rated voltage (DC) | 250 V | |
| Capacity | 560 µF | |
| diameter | 25 mm | |
| Grid | 10 mm | |
| Length | 35 mm | |
| Version | polar | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 130 mΩ | |
| min. operating temperature | -40 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 1 A |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 130 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
