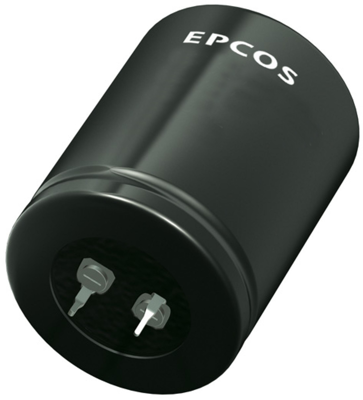

B43544A7277M067 | TDK (EPCOS)
Electrolytic capacitor, 270 µF, 550 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43544A7277M067
Order No.: 45D7677
EAN: 4099879876140
MPN:
B43544A7277M067
B43544A7277M67
Unit Price (€ / pc.)
6.8663 € *
Standard delivery time from the manufacturer is: 22 Weeks
Electrolytic capacitor, B43544A7277M067, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- Extremely high CV product, very compact
- Very high ripple current capability
- High reliability
- Very low ESR at operating conditions above 50 °C
Applications
- Servo drives
- Frequency converters
- Solar inverters
- Medical appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| diameter | 35 mm | |
| ESR (Equivalent Series Resistance) | 430 mΩ | |
| Connection | snap-in | |
| Rated voltage (DC) | 550 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 50 mm | |
| Capacity | 270 µF | |
| min. operating temperature | -25 °C | |
| Ripple current | 1.79 A | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 60 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
