B43541B8476M080 | TDK (EPCOS)

Name: Electrolytic capacitor, 47 µF, 600 V (DC), ±20 %, radial, pitch 10 mm, Ø 25 mm, B43541B8476M080
Brand: TDK (EPCOS)
SKU: 45D7647
Availability: InStock

Electrolytic capacitor, 47 µF, 600 V (DC), ±20 %, radial, pitch 10 mm, Ø 25 mm, B43541B8476M080

Order No.: 45D7647

EAN: 4099879876119

MPN:

B43541B8476M080

B43541B8476M80

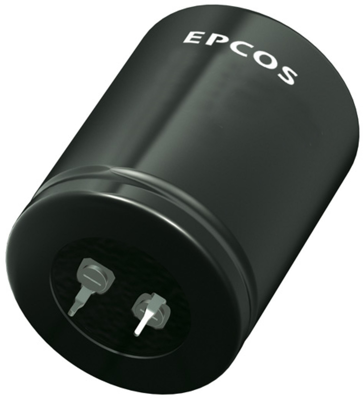

Image may differ

Key Specification:

Version polar

Capacity 47 µF

Rated voltage (DC) 600 V

Tolerance ±20 %

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.9036 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,335.66 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Electrolytic capacitor, B43541B8476M080, EPCOS

Aluminum electrolytic capacitor - Snap-in capacitor

Features

Voltage derating enables 105 °C operation
Rated capacitance 47 µF
Extremely improved performance at high frequencies
Rated voltage 600 V DC

Applications

Servo drives
Frequency converters
Uninterruptible power supplies
Medical appliances

Technical specifications

Filter	Property	Value
	Grid	10 mm
	Ripple current	600 mA
	min. operating temperature	-25 °C
	max. operating temperature	85 °C
	Version	polar
	Connection	snap-in
	diameter	25 mm
	Rated voltage (DC)	600 V
	Tolerance	±20 %
	Capacity	47 µF
	ESR (Equivalent Series Resistance)	2.47 Ω
	Design	radial
	Length	25 mm
