B43541B2108M080 | TDK (EPCOS)

Name: Electrolytic capacitor, 1000 µF, 200 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, B43541B2108M080
Brand: TDK (EPCOS)
SKU: 45D7635
Availability: InStock

Electrolytic capacitor, 1000 µF, 200 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, B43541B2108M080

Order No.: 45D7635

EAN: 4099879876089

MPN:

B43541B2108M080

B43541B2108M80

Image may differ

Key Specification:

Version polar

Capacity 1000 µF

Rated voltage (DC) 200 V

Tolerance ±20 %

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.9742 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,591.74 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

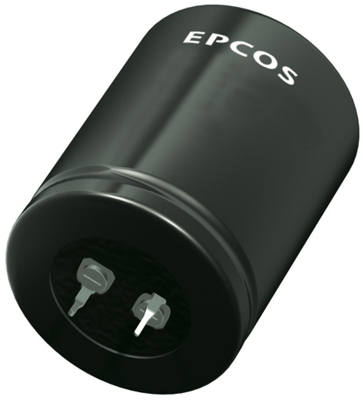

Electrolytic capacitor, B43541B2108M080, EPCOS

Aluminum electrolytic capacitor - Snap-in capacitor

Features

High CV product
Rated capacitance 1000 µF
High reliability
Rated voltage 200 V DC

Applications

Servo drives
Frequency converters
Solar inverters
Medical appliances

Technical specifications

Filter	Property	Value
	Grid	10 mm
	Ripple current	3.99 A
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Version	polar
	Connection	snap-in
	diameter	30 mm
	Rated voltage (DC)	200 V
	Tolerance	±20 %
	Capacity	1000 µF
	ESR (Equivalent Series Resistance)	95 mΩ
	Design	radial
	Length	40 mm
