B43541A9687M060 | TDK (EPCOS)

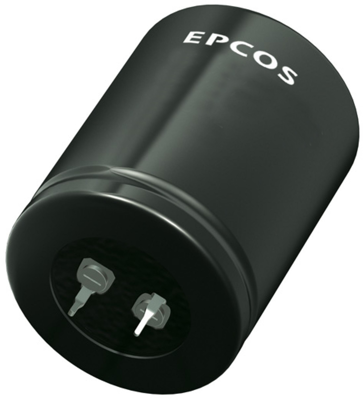

Electrolytic capacitor, 680 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43541A9687M060
Order No.: 45D7633
EAN: 4099879876072
MPN:
B43541A9687M060
B43541A9687M60
Unit Price (€ / pc.)
8.3776 € *
Standard delivery time from the manufacturer is: 22 Weeks
Electrolytic capacitor, B43541A9687M060, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- Voltage derating enables 105 °C operation
- Rated capacitance 680 µF
- High reliability and high ripple current capability
- Rated voltage 400 V DC
Applications
- Servo drives
- Frequency converters
- Uninterruptible power supplies
- Medical appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Ripple current | 4.15 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Connection | snap-in | |
| diameter | 35 mm | |
| Rated voltage (DC) | 400 V | |
| Tolerance | ±20 % | |
| Capacity | 680 µF | |
| ESR (Equivalent Series Resistance) | 120 mΩ | |
| Design | radial | |
| Length | 55 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | HU |
| Original Packaging | Carton with 60 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
