B43501C2477M000 | TDK (EPCOS)
Electrolytic capacitor, 470 µF, 250 V (DC), ±20 %, radial, pitch 10 mm, Ø 25 mm, B43501C2477M000
Not suitable for new designs
Unit Price (€ / pc.)
5.8072 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.81 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8072 €
10 pcs.
5.3788 €
50 pcs.
5.0694 €
100 pcs.
4.7957 €
250 pcs.
4.5577 €
*incl. VAT plus shipping costs
Subject to prior sale

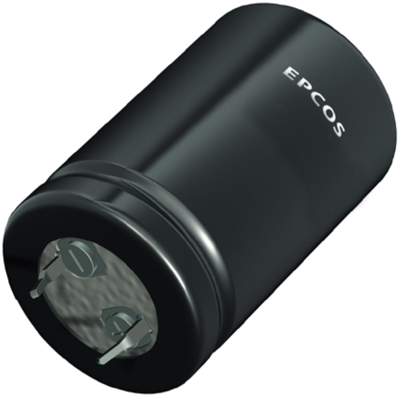

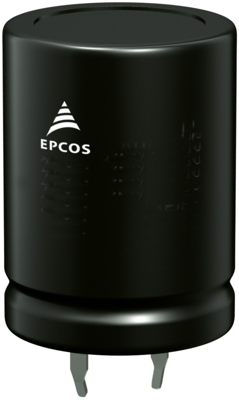

Electrolytic capacitor in aluminum can, type TDK/Epcos B43501.
Insulated can with snap-in connection, to IEC 60364-4
Rated voltage 250 VDC.
Technical specifications
| Rated voltage (DC) | 250 V | |
| Capacity | 470 µF | |
| diameter | 25 mm | |
| Grid | 10 mm | |
| Length | 35 mm | |
| Version | polar | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 210 mΩ | |
| min. operating temperature | -40 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 85 °C | |
| Ripple current | 1.96 A |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 130 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
