B43501A9227M000 | TDK (EPCOS)

Electrolytic capacitor, 220 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 25 mm, B43501A9227M000

Order No.: 15D2735
EAN: 4099879873293
MPN:
B43501A9227M000
B43501A9227M
Series: B43501

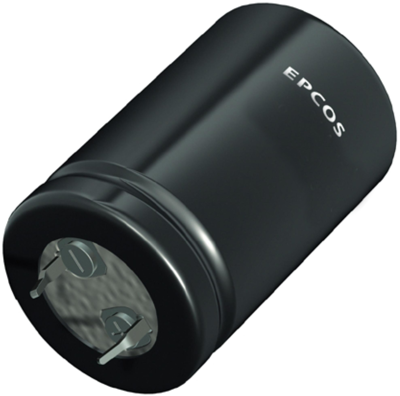

B43501A9227M000 TDK (EPCOS) Electrolytic Capacitors Image 1
B43501A9227M000 TDK (EPCOS) Electrolytic Capacitors Image 2
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
6.5093 € *
Available: 443 pcs.
Total Price:
6.51 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5093 €
10 pcs.
5.7358 €
130 pcs.
5.0218 €
260 pcs.
4.8314 €
1040 pcs.
4.5220 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in aluminum can, type TDK/Epcos B43501.

Insulated can with snap-in connection, to IEC 60364-4

Rated voltage 400 VDC.

Technical specifications
Filter Property Value
max. operating temperature 85 °C
diameter 25 mm
Rated voltage (DC) 400 V
Version polar
Grid 10 mm
Ripple current 1.41 A
Capacity 220 µF
ESR (Equivalent Series Resistance) 300 mΩ
Connection snap-in
Tolerance ±20 %
min. operating temperature -40 °C
Design radial
Length 40 mm
Logistics
Property Value
Country of origin HU
Customs tariff number 85322200
Original Packaging Carton with 130 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
