B43305A9108M000 | TDK (EPCOS)
Electrolytic capacitor, 1000 µF, 400 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B43305A9108M000
Not suitable for new designs
Unit Price (€ / pc.)
20.8845 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
20.88 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8845 €
5 pcs.
19.3375 €
10 pcs.
18.2427 €
25 pcs.
17.2074 €
50 pcs.
16.3863 €
*incl. VAT plus shipping costs
Subject to prior sale

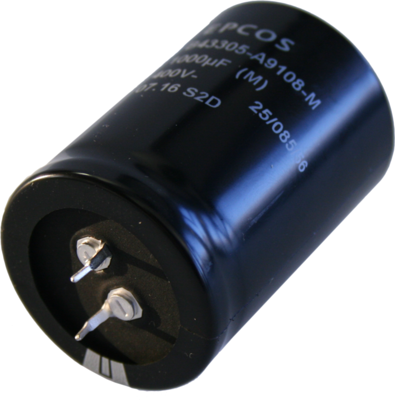

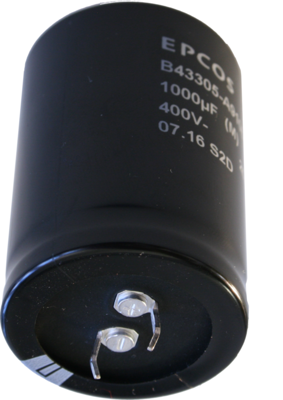

Electrolytic capacitor in aluminum can, type TDK/Epcos B43305.
Compact design with snap-in solder connections and high compatibility with AC currents
Rated voltage 400 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| diameter | 35 mm | |
| ESR (Equivalent Series Resistance) | 140 mΩ | |
| Connection | snap-in | |
| Rated voltage (DC) | 400 V | |
| max. operating temperature | 85 °C | |
| Tolerance | ±20 % | |
| Length | 50 mm | |
| Capacity | 1000 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 3.38 A | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 60 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
