B41858C9397M000 | TDK (EPCOS)

Electrolytic capacitor, 390 µF, 100 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 18 mm, B41858C9397M000

Order No.: 45D7194
EAN: 4099879875990
MPN:
B41858C9397M000
B41858C9397M
B41858C9397M000 TDK (EPCOS) Electrolytic Capacitors

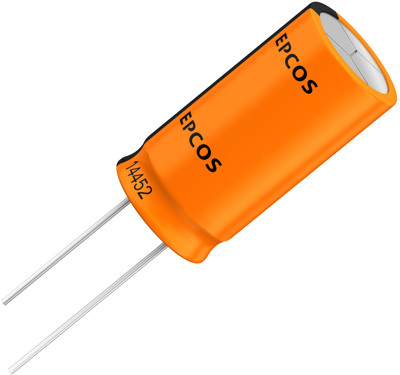

Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,542.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1200 pcs.
1.2852 €

Electrolytic capacitor, B41858C9397M000, EPCOS

Aluminum electrolytic capacitor - Single-ended

Features

  • Low impedance at high frequency
  • High rated capacitance
  • High reliability
  • Long useful life

Applications

  • Automotive electronics
Technical specifications
Rated voltage (DC) 100 V
Capacity 390 µF
diameter 18 mm
Grid 7.5 mm
Length 31.5 mm
Version polar
Design radial
ESR (Equivalent Series Resistance) 72 mΩ
min. operating temperature -55 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 1.907 A
Logistics
Country of origin BR
Customs tariff number 85322200
Original Packaging Bulk with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
