B41858C6188M000 | TDK (EPCOS)

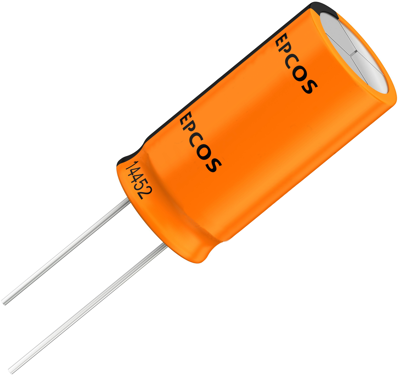

Electrolytic capacitor, 1800 µF, 50 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 18 mm, B41858C6188M000
Order No.: 45D7145
EAN: 4099879875976
MPN:
B41858C6188M000
B41858C6188M
Not suitable for new designs
Unit Price (€ / pc.)
1.4994 € *
Standard delivery time from the manufacturer is: 18 Weeks
Electrolytic capacitor, B41858C6188M000, EPCOS
Aluminum electrolytic capacitor
Features
- Low impedance at high frequency
- High rated capacitance
- High reliability
- Long useful life
Applications
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| diameter | 18 mm | |
| ESR (Equivalent Series Resistance) | 48 mΩ | |
| Rated voltage (DC) | 50 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 31.5 mm | |
| Capacity | 1800 µF | |
| min. operating temperature | -55 °C | |
| Ripple current | 2.989 A | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Original Packaging | Bulk with 100 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
