B41458B4330M000 | TDK (EPCOS)
Electrolytic capacitor, 330000 µF, 16 V (DC), ±20 %, can, pitch 28.5 mm, Ø 64.3 mm, B41458B4330M000
Not suitable for new designs
Unit Price (€ / pc.)
41.5667 € *
Available: 9 pcs.
Total Price:
41.57 € *
Price list
Quantity
Price per unit*
1 pcs.
41.5667 €
3 pcs.
39.4247 €
5 pcs.
37.4731 €
10 pcs.
35.7238 €
*incl. VAT plus shipping costs
Subject to prior sale

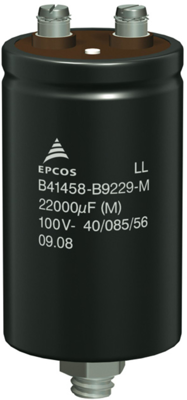

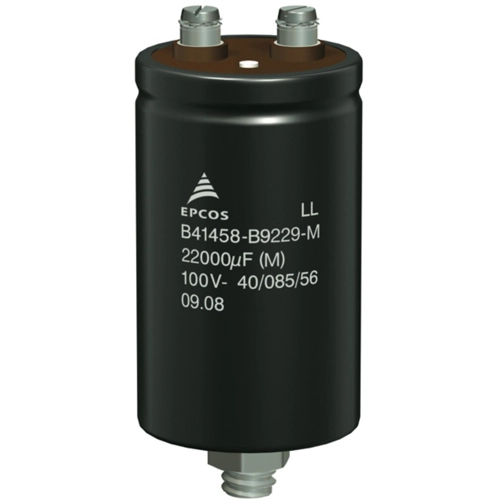

Electrolytic capacitor, B41458B4330M000, EPCOS
Capacitor with screw terminals
Features
- High ripple current capability
- Compact design
- High reliability
- Long useful life
- All-welded construction ensures reliable electrical contact
- Version with low-inductance design available
Applications
- General industrial electronics
- For switch-mode power supplies in professional equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 28.5 mm | |
| Ripple current | 21 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Connection | screw connection | |
| diameter | 64.3 mm | |
| Rated voltage (DC) | 16 V | |
| Tolerance | ±20 % | |
| Capacity | 330000 µF | |
| ESR (Equivalent Series Resistance) | 3 Ω | |
| Design | can | |
| Length | 55 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | HU |
| Original Packaging | Carton with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
