B41252A6338M067 | TDK (EPCOS)

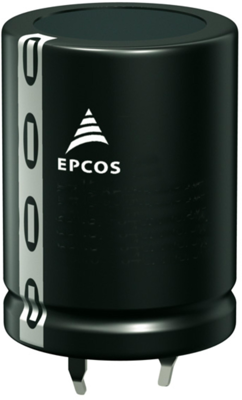

Electrolytic capacitor, 3300 µF, 50 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, B41252A6338M067
Order No.: 45D6380
EAN: 4099879875815
MPN:
B41252A6338M067
B41252A6338M67
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 24 Weeks
Electrolytic capacitor, B41252A6338M067, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- High ripple current capability
- Useful life of 2000 h at 105 °C
- RoHS-compatible
- High rated capacitance
Applications
- Professional power supplies
- Not for automotive applications unless otherwise specified
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | snap-in | |
| Rated voltage (DC) | 50 V | |
| Length | 35 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| diameter | 22 mm | |
| Ripple current | 2 A | |
| Version | polar | |
| Capacity | 3300 µF | |
| Tolerance | ±20 % | |
| Grid | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
