B41231B8109M000 | TDK (EPCOS)

Electrolytic capacitor, 10000 µF, 63 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B41231B8109M000

Order No.: 15D2632
EAN: 4099879873262
MPN:
B41231B8109M000
B41231B8109M
Series: B41231

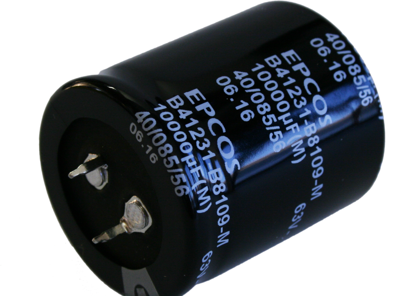

B41231B8109M000 TDK (EPCOS) Electrolytic Capacitors Image 1
B41231B8109M000 TDK (EPCOS) Electrolytic Capacitors Image 2
B41231B8109M000 TDK (EPCOS) Electrolytic Capacitors Image 3
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
6.8782 € *
Available: 185 pcs.
Total Price:
6.88 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8782 €
10 pcs.
6.3665 €
50 pcs.
5.9976 €
100 pcs.
5.6644 €
250 pcs.
5.3907 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in aluminum can, type TDK/Epcos B41231.

Insulated can with snap-in connection, high AC current compatibility, to IEC 60384-4

Rated voltage 63 VDC.

Technical specifications
Filter Property Value
Connection snap-in
Rated voltage (DC) 63 V
Length 40 mm
Design radial
max. operating temperature 85 °C
min. operating temperature -40 °C
diameter 35 mm
Ripple current 6.25 A
Version polar
Capacity 10000 µF
Tolerance ±20 %
Grid 10 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85322200
Original Packaging Carton with 60 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
